Aseptic bag filler（BIB &BID）

Category：Tube in Tube Sterilizer/Aseptic Bag Filler
Release Date：2023/11/29

24-hour free consultation hotline：+8618301859083

Details Overview
Performance characteristics
Technical parameters

It is developed and upgraded upon Italian technologies and our so many years’ experience. It is used together with aseptic UHT sterilizer to form an aseptic packaging system which is applied for fruit paste (tomato paste, mango puree, banana puree, peach paste, apricot paste, strawberry jam, chilli paste, etc.), fruit juice concentrate (apple juice, citrus juice, apple juice, pomegranate juice, etc.), fruit juice/paste with pulp/granules, syrup, dairy products and other liquid product.

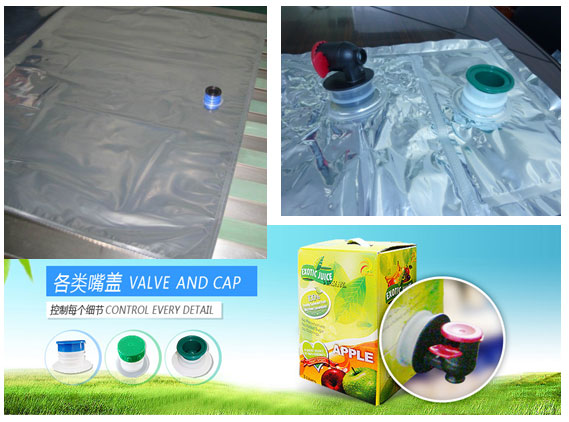

The package is 5L~220L or 1000L enhanced high-barrier aluminum plated/pure aluminum compound film aseptic bag or transparent aseptic bag.

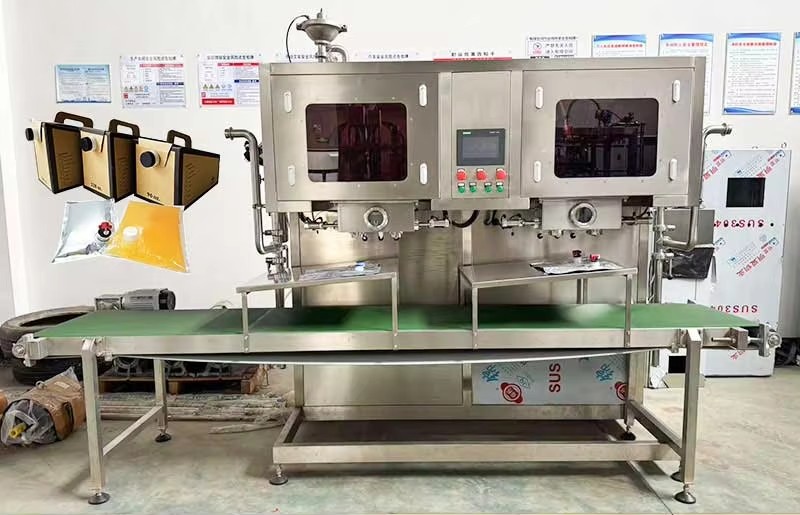

1） Single Head/Double Head BIB Aseptic Filling Machine

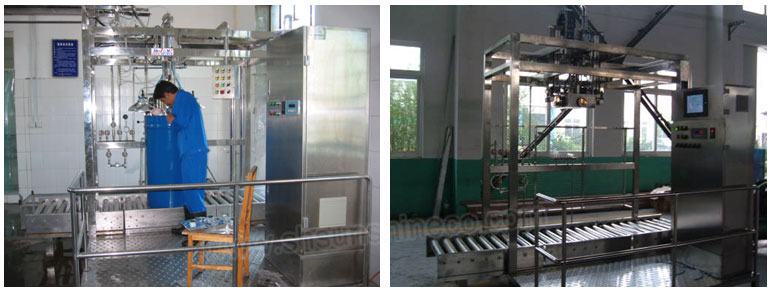

2) Single Head/Sing Drum Aseptic Bag Filler

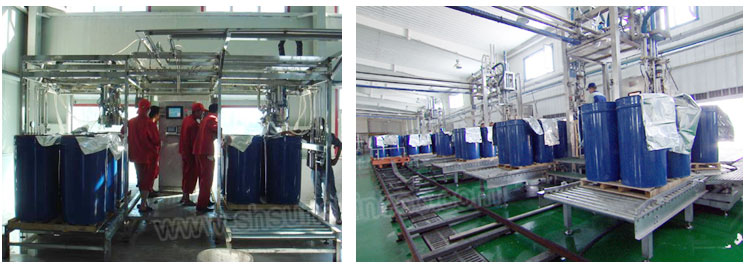

3) Double Heads/Double Drums Aseptic Bag Filler

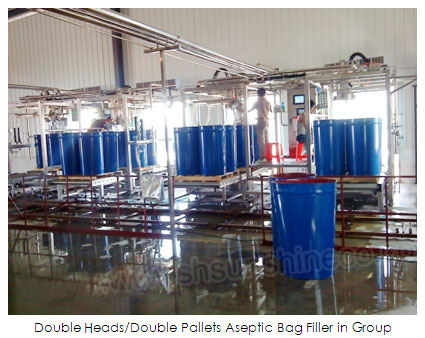

4） Double Heads/Double Pallets Aseptic Bag Filler

Basic Description:

Item	Specification
Application	Applied for fruit paste (tomato paste, mango puree, banana puree, peach paste, apricot paste, strawberry jam, chilli paste, etc.), fruit juice concentrate (apple juice, citrus juice, apple juice, pomegranate juice, etc.), fruit juice/paste with pulp/granules, syrup, dairy products and other liquid product.
Process capacity	1~10tons/hr
Main characters	1- Mainly consist of aseptic filling system, volumetric system, roller conveying system, PLC control system, online label printing system (optional) and operation platform, etc. 2- Sterilize the cap & spout of the bag and the filling chamber by means of steam spraying when running; put the bag into the two clamps by hands; then to open the cap, fill and seal are all finished in the aseptic filling chamber and the whole operation is automatic and controlled by PLC system. 3- CIP and auto SIP available together with the front UHT aseptic sterilizer. 4- Full auto. PLC control system, human machine interface (English/Chinese)operation and manual buttons as standby so as to online monitor and control the whole system’s running. 5- Can be used for different spout structure aseptic bag as per customer’s requirements with customized design on the filling head.
