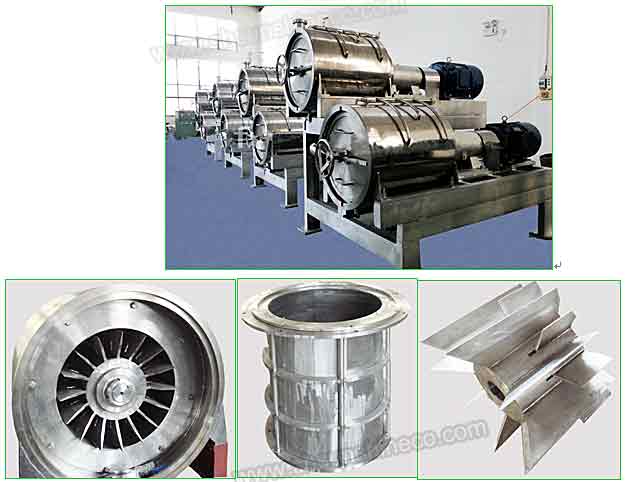

Function

Used for peeling, seeding, pitting, beating and refining of tomatoes, strawberries, blueberries, raspberries, mulberries, bananas, hawthorn, apricot, pumpkin and other fruit and vegetable material.

Process capacity

1~30 ton/Hr

Main features

1.     With the integration of Italy advanced technology and unique conical mesh structure, it effectively improves the juice extraction rate by 2-3%.

2.     According to the material characteristics and processing capacity, you can choose single channel, double channels, three channels structure.

3.     The internal diameter of screen customized according to the customer or the specific project requirements, so as to get different quality requirements of the product.

4.     The end of scraper can increase the PTFE film or PP brush and other auxiliary components to meet the needs of different materials and products.

5.     Paddle speed can be frequency controlled.

6.     The part contacting with the material uses high-quality stainless steel.

7.     It has reasonable structure, high efficiency, large capacity, good stability, beating uniform, low failure rate, etc.

Processing capacity (ton/Hr)

5

10

20

30

Power(KW)

11

18

18.5

37

Blade speed (RPM)

1450 (Frequency conversion, according to the material characteristics and the specific processing technology requirements)

Mesh aperture (mm)

0.6/0.8/1.0/1.5/2.0

Measure(L*W*H, mm)

1680×600×650

1680×800×1500

1850×1300×1680

2000×1800×2250
