Application

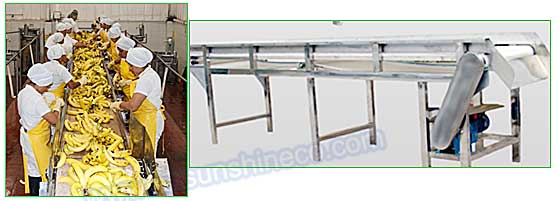

Used for manually selecting tomato, strawberry, apple, mango, banana, grape, mulberry and other fruits.

Process capacity

1~25ton/Hr

Main characters

1-     Main structure with stainless steel.

2-     There are roller type, chain type, belt type according to different fruits’ characteristics and the project’s specified situation.

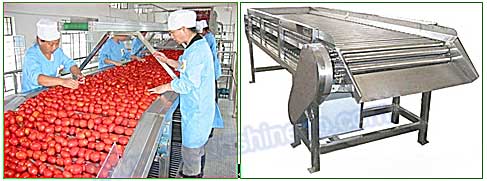

3-     The structure of roller type adopts anti-clamping stainless steel roller so that the fruits shall revolve on its own axis when conveying forward, which shall avoid the leak selection and sanitary dead angle.

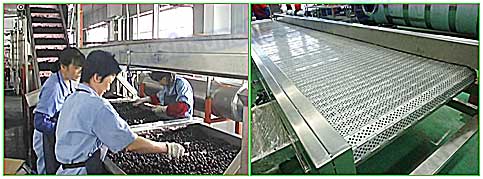

4-     Chain type structure adopts perforated conveying chain plate with water-permeable design.

5-     The spraying device can be equipped to clean the fruits during conveying.

6-     Stable operation, low noise, speed adjustable by frequency changing.

Process capacity (ton/Hr)

5

10

15

25

Power(KW)

1.5

2.2

3

5.5

Dimension(L*W*H, mm)

3500*1080*1400

4500*1180*1400

5500*1280*1400

7000*1480*1400
